Valve Solutions For Corrosive Applications

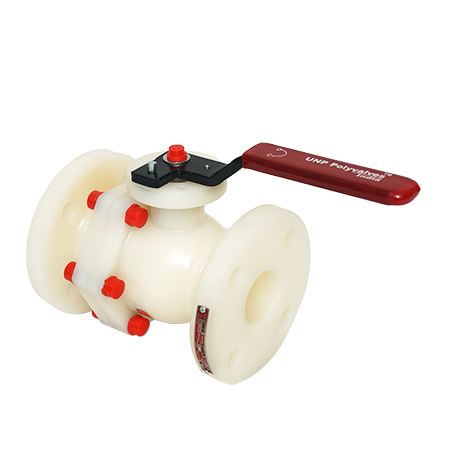

Ball Valve Threaded End
Valve Features

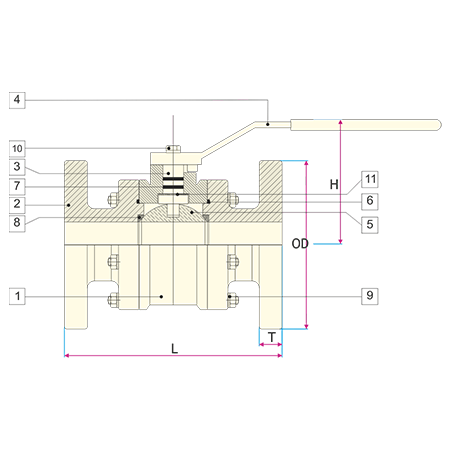

Material Specification
| NO. | DESCRIPTION | QTY. | MATERIAL |
|---|---|---|---|
| 1 | BODY | 1 | PP / ISO.PP/ PVDF / ETFE |
| 2 | END PIECE | 2 | PP / ISO.PP/ PVDF / ETFE |
| 3 | SPINDLE | 1 | EN-8 INSERTED PP/ ISO.PP / PVDF / ETFE LINED |
| 4 | HANDLE | 1 | MS EPOXY COATED WITH FLEXIBLE PVC SLEEVE |
| 5 | BALL | 1 | PP / ISO. PP / PVDF / ETFE |
| 6 | FLANGE SEAL | 2 | EPDM / VITON / PTFE / NEOPRENE |
| 7 | SPINDLE SEAL | 2 | EPDM / VITON / PTFE / NEOPRENE |
| 8 | SEAT | 2 | PTFE |
| 9 | FASTENERS | - | MS GALVANISED / SS-304 / SS-316 |
| 10 | SPINDLE BOLT | 1 | MS GALVANISED / SS-304 / SS-316 |
| 11 | SPINDLE BUSH | 1 | PTFE |
Dimensional Table
| Size (NB) | L±3 | OD | H | T |
|---|---|---|---|---|
| 15 MM | 105 | 20 | 70 | |
| 20 MM | 110 | 25 | 80 | NTP. |
| 25 MM | 135 | 25 | 100 | OR |
| 40 MM | 132 | 25 | 105 | BSP. |
| 50 MM | 160 | 30 | 120 |
