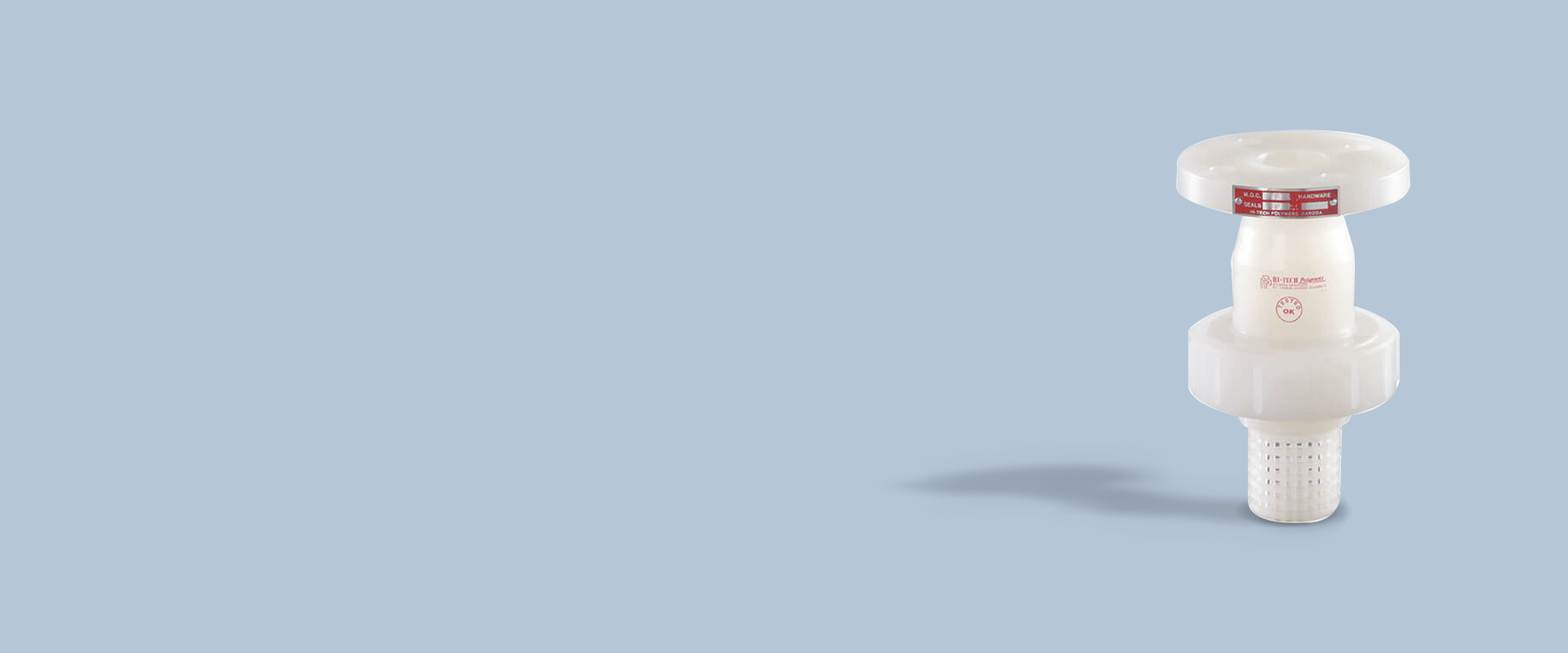

Thermoplastic Foot Valve

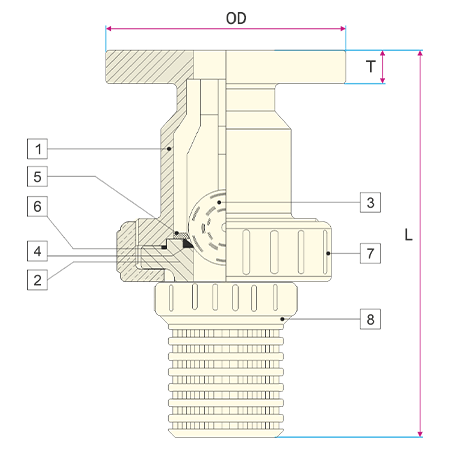

Valve Features
Material Specification
| NO. | DESCRIPTION | QTY. | MATERIAL |
|---|---|---|---|
| 1 | BODY | 1 | PP / ISO.PP/ PVDF /ETFE |
| 2 | SOCKET | 1 | PP / ISO.PP/ PVDF /ETFE |
| 3 | BALL | 1 | PP / ISO.PP/ PVDF /ETFE |
| 4 | SEAT | 1 | EPDM / VITON /PTFE |
| 5 | SEAT PAD | 1 | PP / ISO.PP/ PVDF /ETFE |
| 6 | BODY SEAL | 1 | EPDM / VITON / PTFE / NEOPRENE |
| 7 | COVER NUT | 1 | PP / ISO.PP/ PVDF /ETFE |
| 8 | STRAINER | 1 | PP / ISO.PP/ PVDF /ETFE |
Dimensional Table
| Size (NB) | L±3 | OD | T |
|---|---|---|---|
| 25 MM | 180 | 120 | 17 |
| 40 MM | 230 | 140 | 17 |
| 50 MM | 265 | 165 | 19 |
| 65 MM+ | 315 | 203 | 23 |
| 80 MM | 315 | 203 | 23 |
| 100 MM | 365 | 230 | 23 |
| 150 MM | 556 | 280 | 29 |
