Valve Solutions For Corrosive Applications

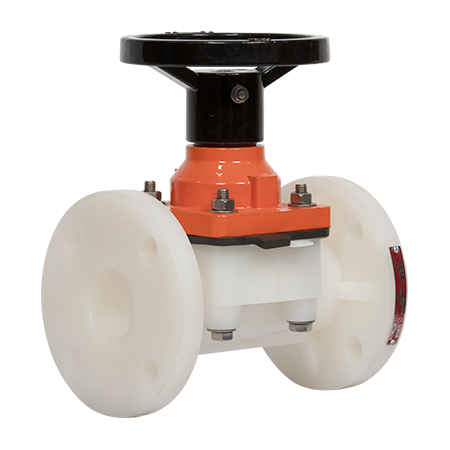

Diaphragm Valve Advance Version 1
Valve Features

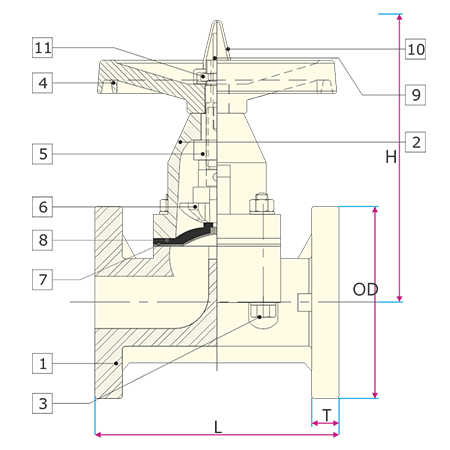

Material Specification
| NO. | DESCRIPTION | QTY. | MATERIAL |
|---|---|---|---|
| 1 | BODY | 1 | PP / ISO.PP/ PPH/ PVDF |
| 2 | BONNET | 1 | CI/CS EPOXY PAINTED |
| 3 | BOLTS & NUTS | 4 | MS GALVANIZED / SS-304 |
| 4 | HAND WHEEL | 1 | POLYPROPYLENE |
| 5 | SLEEVE SPINDLE ASSLY. | 1 | SS 202 / SS 304 / SS 316 |
| 6 | COMPRESSOR | 1 | CAST IRON / CAST STEEL |
| 7 | DIAPHRAGM | 1 | PTFE |
| 8 | RUBBER PAD | 1 | EPDM |
| 9 | POSITION INDICATOR | 1 | PP / PVC |
| 10 | INDICATOR CAP | 1 | POLYCARBONATE |
| 11 | HANDWHEEL NUT | 1 | BRASS |
Dimensional Table
| Size (NB) | L±3 | OD | H | T |
|---|---|---|---|---|
| 15 mm | 120 | 95 | 95 | 17 |
| 20 mm* | 150 | 120 | 150 | 17 |
| 25 mm* | 150 | 120 | 150 | 17 |
| 40 mm | 178 | 140 | 205 | 18 |
| 50 mm | 213 | 160 | 215 | 19 |
| 65 mm** | 280 | 200 | 285 | 24 |
| 80 mm | 280 | 200 | 285 | 24 |
