Valve Solutions For Corrosive Applications

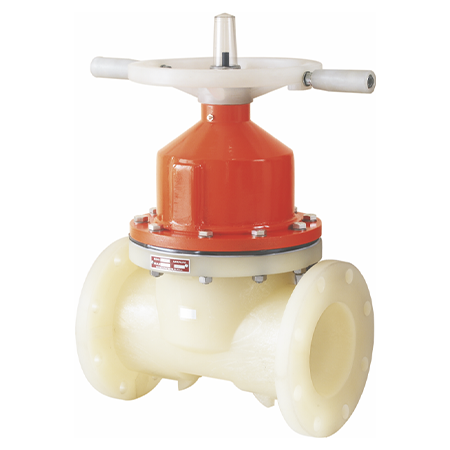

Diaphragm Valve Advance Version 2
Valve Features

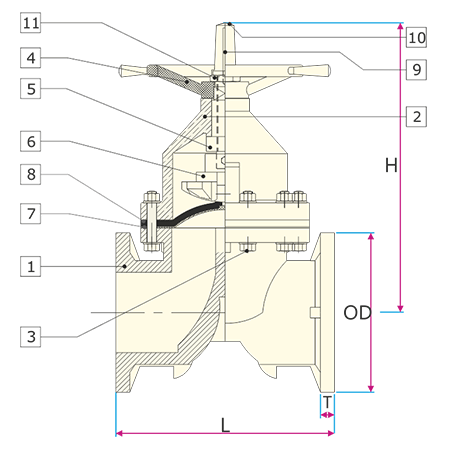

Material Specification
| NO. | DESCRIPTION | QTY. | MATERIAL |
|---|---|---|---|
| 1 | BODY | 1 | PP / ISO.PP/ PPH/ PVDF |
| 2 | BONNET | 1 | CI EPOXY PAINTED |
| 3 | BOLTS & NUTS | - | MS GALVANIZED / SS-304 |
| 4 | HAND WHEEL | 1 | POLYPROPYLENE |
| 5 | SLEEVE SPINDLE ASSLY. | 1 | SS 202 / SS 304 / SS 316 |
| 6 | COMPRESSOR | 1 | CAST IRON |
| 7 | DIAPHRAGM | 1 | PTFE |
| 8 | RUBBER PAD | 1 | EPDM |
| 9 | POSITION INDICATOR | 1 | PP / PVC |
| 10 | INDICATOR CAP | 1 | POLYCARBONATE |
| 11 | HANDWHEEL NUT | 1 | BRASS |
Dimensional Table
| Size (NB) | L±3 | OD | H | T |
|---|---|---|---|---|
| 100 mm | 312 | 288 | 380 | 23 |
| 150 mm | 408 | 280 | 525 | 26 |
