Valve Solutions For Corrosive Applications

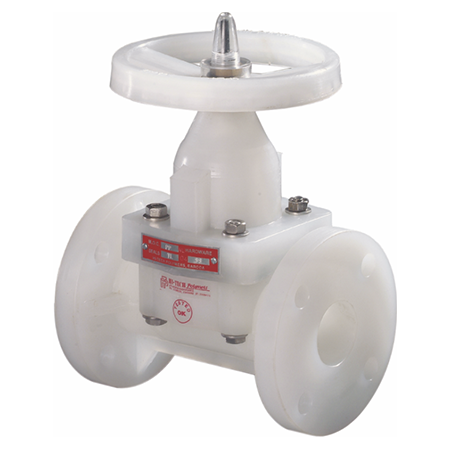

Diaphragm Valve Version 1

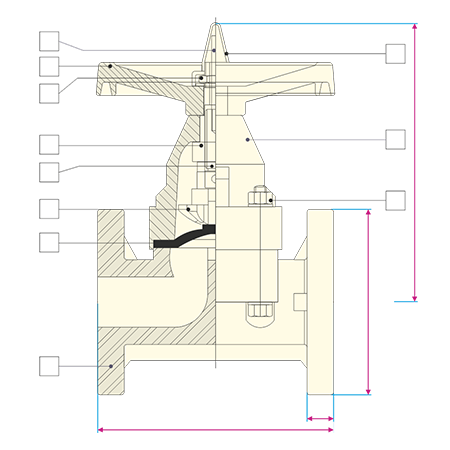

Valve Features
Material Specification
| NO. | DESCRIPTION | QTY. | MATERIAL |
|---|---|---|---|
| 1 | BODY | 1 | PP / ISO.PP/ PVDF / ETFE |
| 2 | BONNET | 1 | POLYPROPYLENE |
| 3 | DIAPHRAGM | 1 | EPDM / VITON / NEOPRENE / HYPALON / 1MM THK PTFE LINED BACKED WITH EPDM |
| 4 | HAND WHEEL | 1 | POLYPROPYLENE |
| 5 | SLEEVE | 1 | SS 202 / SS 304 / BRASS |
| 6 | SPINDLE | 1 | SS 202 / SS 304 / BRASS |
| 7 | COMPRESSOR | 1 | CAST ALUMINIUM / CI |
| 8 | FASTENERS | - | SS-304 / SS-316 / MS GALVANISED |
| 9 | HAND WHEEL NUT | 1 | BRASS |
| 10 | POSITION INDICATOR | 1 | PP / PVC |
| 11 | INDICATOR CAP | 1 | POLYCARBONATE |
Dimensional Table
| Size (NB) | L±3 | OD | H | T |
|---|---|---|---|---|
| 15 MM | 120 | 98 | 95 | 17 |
| 20 MM* | 142 | 120 | 146 | 17 |
| 25 MM | 142 | 120 | 146 | 17 |
| 40 MM | 178 | 140 | 215 | 18 |
| 50 MM | 213 | 160 | 245 | 19 |
| 65 MM** | 255 | 200 | 285 | 24 |
| 80 MM | 255 | 200 | 285 | 24 |
| 100 MM | 312 | 228 | 345 | 25 |
