Diaphragm Valve Version 2
Valve Features

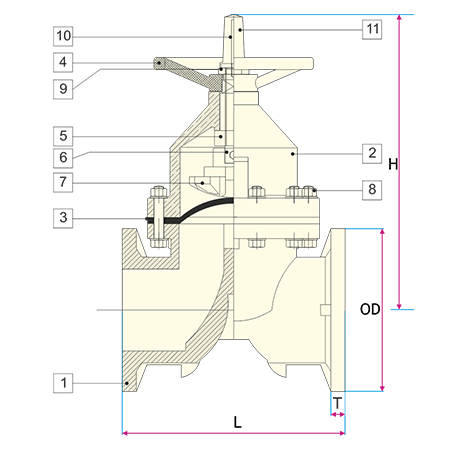

Material Specification
| NO. | DESCRIPTION | QTY. | MATERIAL |
|---|---|---|---|
| 1 | BODY | 1 | PP / ISO.PP/ PVDF / ETFE |
| 2 | BONNET | 1 | PP / ISO.PP/ PVDF / ETFE |
| 3 | DIAPHRAGM | 1 | EPDM / VITON / NEOPRENE / HYPALON / 1MM THK PTFE LINED BACKED WITH EPDM |
| 4 | HAND WHEEL | 1 | POLYPROPYLENE |
| 5 | SLEEVE | 1 | SS 202 / SS 304 / BRASS |
| 6 | SPINDLE | 1 | SS 202 / SS 304 / BRASS |
| 7 | COMPRESSOR | 1 | CAST ALUMINIUM / CI |
| 8 | FASTENERS | - | SS-304 / SS-316 / MS GALVANISED |
| 9 | HAND WHEEL NUT | 1 | BRASS |
| 10 | POSITION INDICATOR | 1 | PP / PVC |
| 11 | INDICATOR CAP | 1 | POLYCARBONATE |
Dimensional Table
| Size (NB) | L±3 | OD | H | T |
|---|---|---|---|---|
| 150 MM | 408 | 280 | 512 | 26 |
