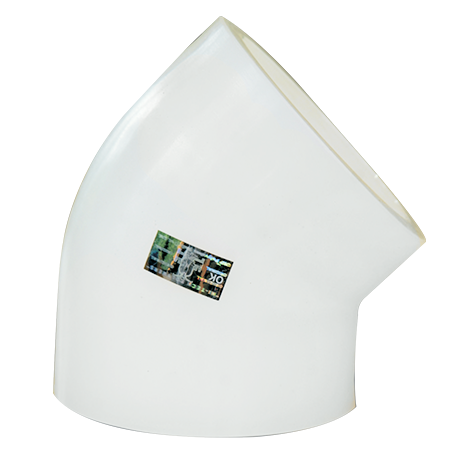

Elbows 45o PP/ISO.PP/PPH/PVDF Socket Weld Ends
Elbows 450
Dimension Table
| Size(OD) | PN | D | L | Z |
|---|---|---|---|---|
| 20mm | 16 | 31 | 21 | 7 |
| 25 MM | 16 | 36 | 24 | 8 |
| 32 MM | 16 | 44 | 28 | 10 |
| 40 MM | 16 | 53 | 33 | 13 |
| 50 MM | 16 | 64 | 36 | 13 |
| 63 MM | 16 | 82 | 43 | 16 |
| 75 MM | 16 | 93 | 51 | 20 |
| 90 MM | 16 | 114 | 58 | 23 |
| 110 MM | 16 | 134 | 68 | 27 |
