Valve Solutions For Corrosive Applications

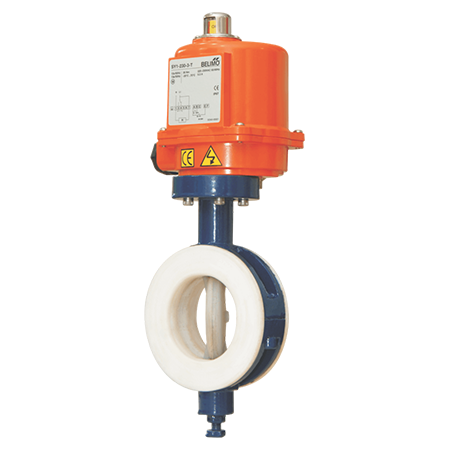

Elecrically Actuated Lined Butterfly Valve
Valve Solutions For Corrosive Applications
Elecrically Actuated Lined Butterfly Valve

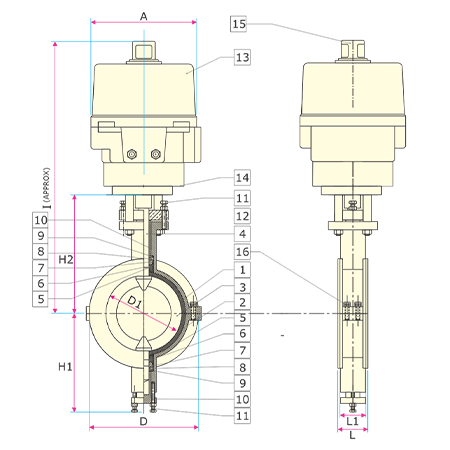

Valve Features
Material Specification
| NO. | DESCRIPTION | QTY. | MATERIAL |
|---|---|---|---|
| NO. | DESCRIPTION | QTY. | MATERIAL |
| 1 | BODY | 2 | CS/SS EPOXY PAINTED |
| 2 | SEAT | 1 | PTFE |
| 3 | DISC | 1 | SS INSERTED PPH/PVDF/PFA/FEP |
| 4 | STEM | 1 | SS 304 PPH/PVDF/PFA/FEP LINED INTEGRAL TO DISC |
| 5 | STEM SEAL - TOP & BOTTOM | 2 | PTFE |
| 6 | SEAT CUP - TOP & BOTTOM | 2 | PPH/PVDF/PFA/FEP |
| 7 | TEE BUSH - TOP & BOTTOM | 1 | SS-304 |
| 8 | DISC SPRING - TOP & BOTTOM | 2 | 50 Crv 4 |
| 9 | THRUST WASHER - TOP & BOTTOM | 2 | SS-304 |
| 10 | THRUST COLLAR - TOP & BOTTOM | 2 | STEEL/SS |
| 11 | ADJUSTABLE BOLTS | 1 | SS/STEEL PLATED |
| 12 | LOCK PLATE (FOR TOP SEAL) | 1 | CAST IRON |
| 13 | ELECTRICAL ACTUATOR | 1 | ALUMINIM ALLOY |
| 14 | MANUAL OVERRIDE | 1 | STANDARD INBUILT |
| 15 | POSITION REGULATOR | 1 | STANDARD |
| 16 | FASTENERS | 1 | HT STEEL/SS |
Dimensional Table
| Size (NB) | L+3 | L1+1 | D1+2 | D+2 | H1+8 | H2+8 | A | B | C | I |
|---|---|---|---|---|---|---|---|---|---|---|
| 50 MM | 51 | 43 | 50 | 92 | 122 | 110 | Dimensions may vary as per actuator make & models & will be provided with offer drawing as per customer requirement. | |||
| 65 MM | 54 | 46 | 65 | 105 | 132 | 122 | ||||
| 80 MM | 54 | 46 | 75 | 127 | 140 | 130 | ||||
| 100 MM | 60 | 52 | 100 | 157 | 150 | 150 | ||||
| 125 MM | 64 | 56 | 125 | 185 | 165 | 215 | ||||
| 150 MM | 64 | 56 | 160 | 216 | 190 | 250 | ||||
| 200 MM | 70 | 60 | 200 | 270 | 200 | 290 | ||||
| 250 MM | 80 | 68 | 250 | 323 | 250 | 315 | ||||
| 300 MM | 90 | 78 | 300 | 380 | 295 | 385 | ||||
| 350 MM | 90 | 78 | 350 | 412 | 335 | 420 | ||||
| 400 MM | 114 | 102 | 400 | 470 | 365 | 450 | ||||
