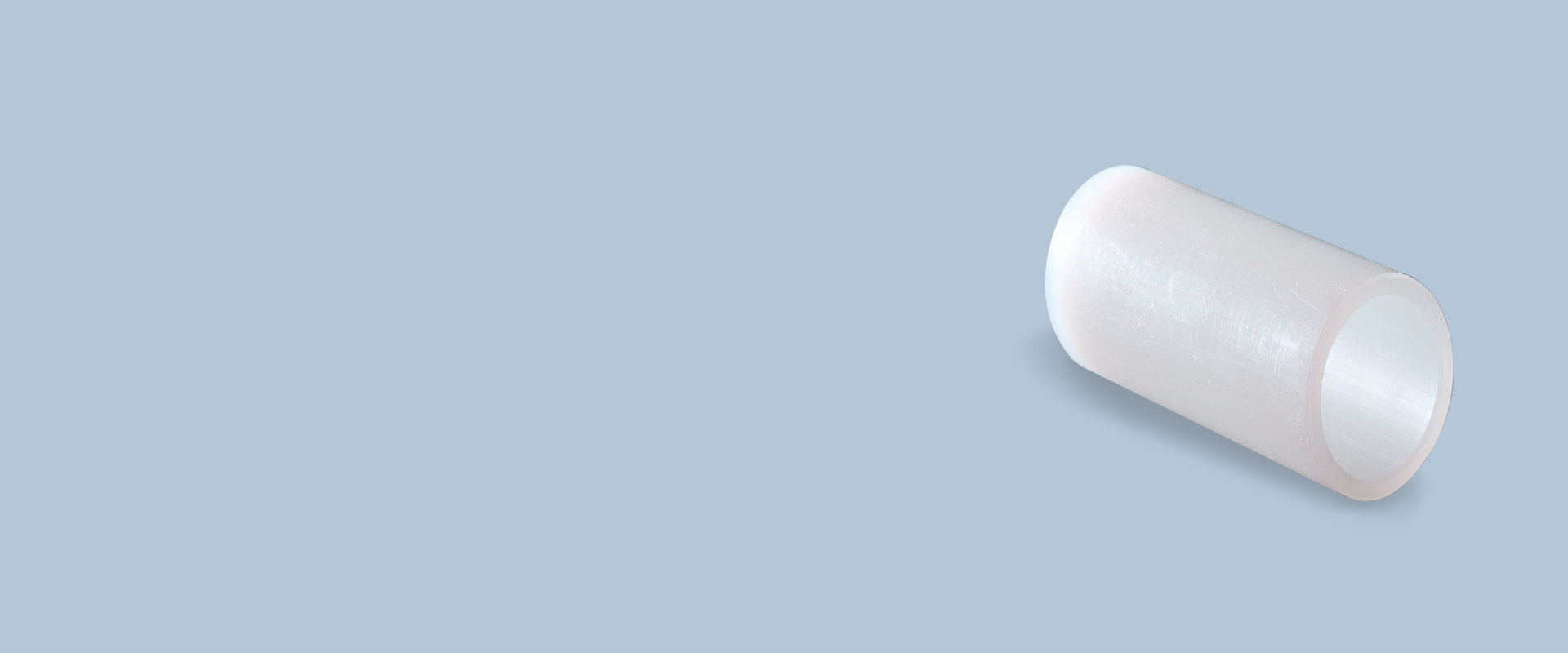

Pipes PVDF Plain Ends
Valve Features
PN-10
| Size (NB) | THICKNESS | LENGTH |
|---|---|---|
| OD | e | L |
| 63 MM | 2.0 | 5000 |
| 75 MM | 2.3 | 5000 |
| 90 MM | 2.8 | 5000 |
| 110 MM | 3.4 | 5000 |
| 125 MM | 3.9 | 5000 |
| 140 MM | 4.3 | 5000 |
| 160 MM | 4.9 | 5000 |
| 180 MM | 5.5 | 5000 |
| 200 MM | 6.2 | 5000 |
| 225 MM | 6.9 | 5000 |
PN-16
| Size (NB) | THICKNESS | LENGTH |
|---|---|---|
| OD | e | L |
| 15 MM | 1.9 | 5000 |
| 20 MM | 1.9 | 5000 |
| 25 MM | 1.9 | 5000 |
| 32 MM | 2.4 | 5000 |
| 40 MM | 2.4 | 5000 |
| 50 MM | 3.0 | 5000 |
| 63 MM | 3.0 | 5000 |
| 75 MM | 3.6 | 5000 |
| 90 MM | 4.3 | 5000 |
| 110 MM | 5.3 | 5000 |
| 125 MM | 6.0 | 5000 |
| 140 MM | 6.7 | 5000 |
| 160 MM | 7.7 | 5000 |
